TL;DR: A shower pan liner is a flexible, waterproof membrane installed beneath the tile in a shower floor to create a hidden, watertight basin that captures any water seeping through the grout and directs it safely to the drain, preventing leaks and structural damage. In a traditional tile shower, it’s typically made from PVC or CPE, commonly 30 to 40 mils thick, and it works as part of a system that includes a pre-slope of 1/4 inch per foot and a top mortar bed at least 1.5 inches thick.
If you're planning a bathroom remodel in Kalamazoo, Portage, or anywhere else in Southwest Michigan, you've probably heard terms that sound more complicated than they should. "Shower pan liner" is one of them. It sounds like a specialty part, but it's really one of the most important pieces in the whole shower.
Most homeowners assume the tile and grout are what keep water in. They aren't. Tile is the finish surface. Grout slows water down, but it doesn't turn a shower into a waterproof box. The actual protection lives underneath, hidden where you never see it after the job is done.
Your Shower's Unseen Hero What a Pan Liner Really Does
A homeowner in Southwest Michigan usually calls about a shower after the visible damage shows up. The bathroom floor feels soft near the curb. Paint starts peeling on the ceiling below. The shower still looks decent from above, but the trouble started underneath long before that.
A shower pan liner is the hidden layer that stands between daily shower use and slow water damage in the framing. It sits below the finished tile assembly and catches the moisture that gets past the surface, then directs that water to the drain where it belongs.
It works like a backup basin built into the shower floor. You never see it after installation, but it protects the subfloor, wall bottoms, and nearby framing every single day the shower is used.
Why tile and grout aren't the waterproof layer
Homeowners hear "tile shower" and naturally assume the tile is what holds water back. In real installations, tile and grout are the wear surface. They handle foot traffic, soap, and cleaning. They are not the layer that keeps moisture out of the structure.
Water finds its way through grout joints, around drain openings, and at changes of plane. That is normal. The shower has to be built with that reality in mind.
Practical rule: If a shower depends on tile and grout alone to stay dry, it isn't built right.
Pan liners are commonly made from PVC or CPE because those materials can bend, fold, and hold up inside a shower base. That flexibility matters on real projects, especially once a shower includes a curb, bench, offset drain, or an awkward footprint in an older Michigan home.
The real-world impact of a missing liner
When the liner is missing, punctured, installed flat, or poorly connected at the drain, water has nowhere controlled to go. It lingers in the mortar bed, seeps into wood, and starts affecting areas outside the shower itself. I have opened up showers that looked fine from the bathroom side and found dark framing, swollen subfloors, and moldy insulation below.
Southwest Michigan homes add another layer of concern. Seasonal humidity, long heating seasons, and the moisture conditions common in basements and first-floor baths can make a bad shower assembly fail faster and smell worse. In age-in-place and curbless shower designs, the margin for error gets even smaller because there is less room to contain and redirect water. The waterproofing has to be planned as part of the whole floor, not treated like an afterthought.
A pan liner is one of those parts homeowners never see, but the quality of the whole shower depends on it. If it is done right, the shower stays where it belongs. If it is done wrong, the repair rarely stays small.

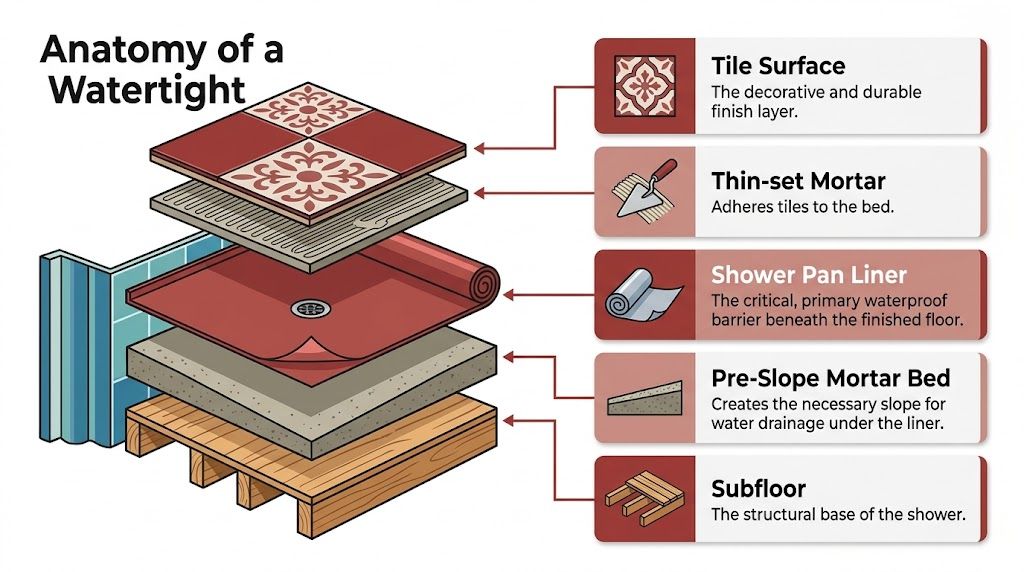

Anatomy of a Watertight Shower Floor
A shower floor is a drainage system with tile on top. If the layers under that tile are built in the right order, water heads to the drain and out of the house. If they are not, moisture stays trapped in the base and starts working on the framing.
The layers from bottom to top
At the bottom is the subfloor. In a lot of Kalamazoo and Portage homes, that means wood framing and plywood or OSB. Before any shower work starts, that structure has to be stiff, dry, and worth building on. If the floor has rot, bounce, or old water damage, covering it up just hides a bigger repair.
On top of that goes the pre-slope mortar bed. This is the part many bad shower builds miss. The liner should rest on a surface that pitches toward the drain so any water that reaches it can keep moving instead of sitting in place.
Then the shower pan liner is installed. It runs across the floor, turns up the walls, wraps the curb correctly if there is one, and locks into a clamping drain. In curbless or age-in-place showers, that detailing gets more demanding because the waterproofed area often needs to extend beyond the wet zone and tie into the main bathroom floor without creating a trip point.
Above the liner sits the top mortar bed, which supports the tile. Then come the thinset, tile, and grout that you see every day.
Slope and thickness are not small details
The floor still needs the proper pitch. A common standard is 1/4 inch per foot toward the drain. That is enough slope to move water without making the floor feel awkward underfoot.
The top mortar bed also needs enough body to hold together and support the tile assembly. On larger shower floors, especially custom layouts with benches or long runs to a linear drain, installers may add reinforcement depending on the design and the system being used. That is one reason I measure the whole shower as a system, not just the footprint on paper.
The drain connection matters as much as the liner
A traditional liner shower uses a drain with a clamping ring and open weep holes. Those weep holes let moisture at the liner level enter the drain. If they get packed with mortar, the base stays saturated longer than it should.
I have torn out showers where the tile looked decent but the mud bed smelled musty and stayed dark because the weep holes were blocked. Homeowners often first notice the result outside the shower, including stains below. If that is happening in your home, these 8 signs of water damage on your ceiling line up with what a leaking shower can cause.
The liner, slope, and drain have to work together. One weak detail can shorten the life of the whole shower.
Why liner material and layout matter
In traditional mortar-bed showers, 40 mil liner material is a common professional choice because it stands up better during installation than thinner material. PVC is used on many projects because it is flexible and widely available. CPE is another option and can make sense in specialty applications where temperature exposure is a concern.
Material choice is only part of the job. The folds at the corners, the height up the walls, the fastening locations, and the drain cut all matter just as much. A good liner ruined by a few careless fasteners is still a failed pan.
Shower Pan Liner Material Comparison
| Feature | PVC (Polyvinyl Chloride) | CPE (Chlorinated Polyethylene) |
|---|---|---|
| Common use | Common choice for standard tile showers | Often selected for specialty applications |
| Typical thickness discussed here | Commonly 30 to 40 mil | Commonly 40 mil in durable applications |
| Flexibility | Flexible and good for custom shapes | Flexible, with strong thermal stability |
| Sheet sizing | Often available in wide sheets to reduce seams | Used in comparable sheet applications |
| Best fit | General custom tile shower work | Heated-floor and specialty conditions |
What a correct build looks like in the field
A proper traditional shower floor has a sound subfloor, a pre-slope, a liner that turns up the walls and ties into the drain correctly, protected weep holes, and a mortar bed ready for tile. In Southwest Michigan, I also pay close attention to transitions at exterior walls, basement slabs, and curbless entries because our moisture conditions and freeze-thaw cycles expose sloppy work faster than people expect.
That hidden assembly is what protects the bathroom you paid for. Tile is the finish. The waterproofing below it is what keeps the remodel valuable.
Why Shower Pan Liners Fail and The Telltale Signs
A failed shower pan liner usually doesn't announce itself right away. It starts subtly. A little moisture sits where it shouldn't. Then a little more. Then the smell shows up, or the tile starts moving, or somebody downstairs notices a stain on the ceiling.
One of the hardest parts for homeowners is that the shower can still look decent on the surface while the base is failing underneath. By the time the damage becomes obvious, the problem has usually been there for a while.
The installation mistakes that cause most failures
Industry guidance and plumbing-code emphasis suggest improper installation is behind up to 80% of shower leaks, and a missed 24-hour flood test is one of the biggest reasons slow leaks slip through before tile goes in, as noted in Oatey's overview of installing a shower pan and flood testing it.
Here are the failure points I see most often in real remodel work:
- Flat liner installation: The liner gets laid over a flat surface instead of a pre-slope. Water then sits in the mortar bed instead of draining correctly.
- Punctures in the wrong places: Staples, screws, or nails placed too low can create tiny leak paths. The shower may pass casual inspection and still fail over time.
- Bad corner folds: Corners take stress. If they're bunched, cut incorrectly, or not dammed properly, they become weak spots.
- Clogged weep holes: Mortar or sealant blocks the drain's relief path. Water reaches the liner but can't move through the drain assembly the way it should.
The warning signs homeowners shouldn't ignore
The symptoms usually show up before a total failure, but they don't always point neatly to the source. That's why pattern recognition matters.
Watch for signs like these:
- Musty odors that don't leave: If the bathroom smells damp even after cleaning, trapped moisture may be sitting below the tile.
- Loose or cracking floor tile near the drain: Persistent movement in that area often means the base underneath has stayed wet too long.
- White chalky residue in grout joints: Efflorescence can be a clue that moisture is moving through cement-based materials.
- Water stains below the shower: If there's a room under the bathroom, ceiling discoloration is a major red flag.
If you're trying to sort out whether a stain below the bath is normal condensation or something more serious, this guide on 8 signs of water damage on your ceiling gives homeowners a useful checklist.
A visual walkthrough helps too. This video shows the kinds of shower pan issues that can turn a hidden problem into visible damage.
Why the flood test matters
A shower pan should be tested before tile covers the work. The pan is filled and left standing so the installer can verify that the liner, corners, and drain connection hold water. That step catches problems while they're still fixable.
If a contractor skips pan testing, they're asking the finished tile to hide their mistakes.
What works is patience. Build the pan, test it, then move on. What doesn't work is assuming the shower is waterproof because it looks tidy at rough-in.

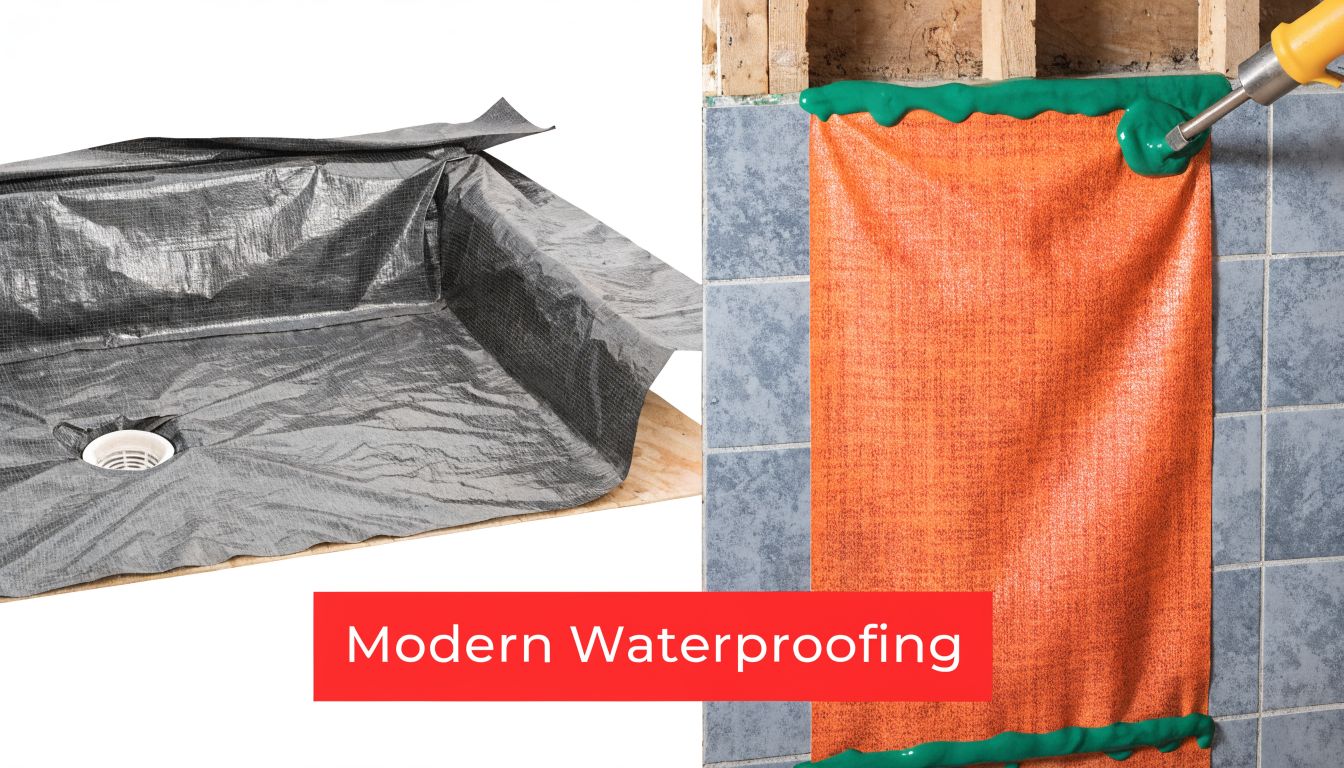

Traditional Liners vs Modern Bonded Waterproofing
Homeowners planning a new shower usually hear about two different waterproofing approaches. One is the traditional pan liner system under a mortar bed. The other is a modern bonded membrane system applied directly beneath the tile.
Neither approach is automatically right for every project. The better question is which system fits the shower design, the budget, and the installer's actual skill set.
How the two systems differ
A traditional liner system is a water-in, water-out assembly. Some moisture gets through the tile and mortar. The liner underneath catches it and directs it to the drain through the weep-hole system.
A bonded waterproofing system stops water closer to the tile surface. That can mean a sheet membrane or a liquid-applied membrane tied into a compatible drain and wall system. In that setup, the goal is to keep the mud bed or substrate from taking on much moisture in the first place.
Real trade-offs homeowners should understand
Traditional liners are familiar, proven, and still a solid choice when they're installed correctly. High-quality 40 mil PVC or CPE liners can offer a 20 to 30 year service life, and their tear resistance often exceeds 300 N/m, according to this pan liner material specification from PASCO. That's one reason they continue to meet FHA/HUD requirements for concealed waterproofing.
Bonded systems bring different advantages. They can dry out faster because water isn't expected to migrate down into a thick mortar bed in the same way. They also pair well with integrated drains, wall membranes, and some curbless designs.
A practical side-by-side view
| System | Where it waterproofs | Strengths | Trade-offs |
|---|---|---|---|
| Traditional pan liner | Below the mortar bed | Time-tested method, durable material, works well for many custom tile showers | More parts to coordinate, mortar bed can stay damp longer, drain details matter a lot |
| Bonded waterproofing | Directly beneath tile | Faster-drying assembly, integrated approach, useful for certain modern layouts | Material cost is often higher, less forgiving if the membrane application is sloppy |
What works in the field
What works is picking the system your installer knows how to execute cleanly. A traditional liner built by someone who understands pre-slopes, dam corners, and weep-hole protection is better than a fancy bonded system installed badly.
What doesn't work is mixing methods without a clear plan. Some showers end up with overlapping products and confused sequencing, which creates weak transitions instead of extra protection.
Good waterproofing isn't about using the newest material. It's about building one complete, compatible system and following it all the way through.
In many Southwest Michigan remodels, both methods can make sense. The right choice depends on shower shape, drain location, accessibility goals, and how the rest of the bathroom floor needs to be waterproofed.
Budgeting Your Project and Why This Isn't a DIY Job
A lot of Southwest Michigan homeowners reach this stage and see a line item for shower waterproofing that seems high for something buried under mortar and tile. Then I walk them through what happens if that buried layer fails. A bad paint color is annoying. A bad shower base can soak subflooring, swell trim, stain ceilings below, and force a full tear-out of a bathroom that looked finished a few months earlier.
The liner itself is only one part of the cost. What you are paying for is layout, slope, drain integration, corner treatment, flood testing, and the judgment to know how the whole assembly needs to change when the shower is curbless, built over older framing, or designed for aging in place. Those details matter even more in accessible showers, where there is less room for error and water has to be controlled without relying on a tall curb.
What actually drives the price
Budget changes based on the shower you are building, not just the material you choose.
- Size and shape: A standard rectangular shower is faster to build than one with angles, benches, a niche-heavy layout, or partial walls.
- Drain location: Center drains, linear drains, and relocated drains each change the labor and the floor prep.
- Subfloor condition: In older Southwest Michigan homes, installers often find patched framing, out-of-level floors, or past moisture damage that has to be corrected before waterproofing starts.
- Accessibility goals: A curbless or zero-threshold shower usually needs more planning, more floor work, and tighter coordination with the rest of the bathroom.
- Waterproofing system: Material cost and labor vary depending on the method, but the bigger cost difference usually comes from complexity and execution.
That is why two showers that look similar from the doorway can price very differently on paper.
Why DIY goes sideways
Homeowners can watch a few videos and get the impression that this is a careful weekend project. Field conditions do not work that way. The drain has to sit at the right height. The slope has to be consistent. Fasteners have to stay out of the wrong areas. Corners and transitions have to stay watertight after the walls, floor, and drain all move a little through normal use.
One missed detail can sit hidden for months.
The plumbing side adds another layer. Drain body selection, trap location, and how the waterproofing ties into the drain all have to be coordinated before tile starts. If you want a clearer sense of where that line crosses into licensed trade work, this overview of professional plumbing services helps explain why shower failures often start with coordination problems, not tile problems.
Where professional work pays for itself
I tell homeowners to treat the shower base like the roof of the room. Nobody sees it once the job is done, but every finish above it depends on it doing its job every day.
Professional installation costs more up front. It also buys planning, sequencing, testing, and accountability. That matters even more in second-floor baths, basement remodels, and age-in-place projects where the shower may need a wider footprint, a flush entry, or a layout that keeps water contained without creating a trip hazard.
A crooked tile can be reset. A leaking shower floor usually means demolition, dust, downtime, and paying for the same bathroom twice.
Trademaster Construction offers homeowners a way to start budgeting before the full design and site review. That early number is helpful, but true value comes from having the shower base built by someone who understands how waterproofing, framing, plumbing, and accessibility have to work together on site.
Special Considerations for Southwest Michigan Showers
Southwest Michigan showers deal with more than daily water use. Seasonal humidity, winter dryness, older housing stock, and basement-level bathrooms all change how a shower performs over time. Those conditions don't change the purpose of a pan liner, but they do raise the importance of choosing the right system and installing it carefully.
A basement shower, for example, can face different moisture conditions than an upstairs primary bath. A family remodeling for aging parents may also need a very different floor design than a standard curb-and-door setup.
Why accessible showers change the conversation
Most online explanations of what is a shower pan liner stop at standard tile showers. They don't address curbless entries, wheelchair access, or age-in-place planning. That's a real gap, because these projects require more precision, not less.
For age-in-place homeowners in Southwest Michigan, a pan liner is fundamental to a safe curbless or zero-threshold shower. Proper installation with precise sloping is what helps keep water inside the shower area without relying on a tall curb, as noted by Trademaster's accessibility-focused remodeling context.
What changes in a curbless or zero-threshold design
In a standard shower, the curb gives you a little forgiveness. In a curbless shower, that forgiveness is gone. The floor has to manage water by design.
That usually means paying close attention to:
- Floor recessing or shaping: The shower area often needs to be lowered or carefully built so the finished floor can still slope without creating a trip point.
- Drain strategy: Many accessible showers benefit from drain placement that helps capture water efficiently across a wider open entry.
- Expanded waterproofing area: In a zero-threshold layout, the wet zone often extends beyond the shower footprint itself, especially near transitions.
A curbless shower isn't just a standard shower with the curb removed. It has to be designed from the subfloor up to control water.
Material choices and local practicality
PVC is still a common liner choice in many tile showers because it's flexible and easy to adapt to custom shapes. CPE can be useful where heat resistance matters more. In practical field terms, the right material often depends on the shower design and whether the floor assembly includes specialty conditions.
For homeowners in Kalamazoo, Portage, and nearby communities, accessible remodels also need to balance long-term durability with easier daily use. A shower that looks modern but lets water escape into adjacent flooring isn't age-in-place friendly. It's just a future repair.
What works for local remodels
The best shower systems for this area are the ones that match the house and the family using it. In an older home, that may mean adapting structure before waterproofing starts. In a forever-home remodel, it may mean planning a curbless entry now so the space still works years from today.
What doesn't work is copying a showroom look without rebuilding the floor underneath to support it.
Conclusion The Foundation of a Lasting Bathroom
A shower pan liner doesn't get the attention tile, fixtures, or glass get. It should still be one of the first things you ask about in a remodel. It's the hidden layer that protects the subfloor, supports proper drainage, and keeps a tile shower from turning into a slow leak with expensive consequences.
The details matter. The base needs the right slope. The liner needs to be installed without punctures. The drain's weep holes need to stay functional. The pan needs to be tested before finish materials cover the work.
If you're comparing bids, don't just ask what tile is going in. Ask how the shower base is being built and waterproofed. A good answer will sound specific, not vague.
A well-built shower isn't just about how it looks the day the project wraps up. It's about whether the floor system underneath still protects your home years later.
Frequently Asked Questions About Shower Pan Liners
Can a shower pan liner be repaired, or does the whole shower need replacement
That depends on the location of the failure and how the shower was assembled.
A small puncture caught early can sometimes be repaired. The problem is access. In a traditional tile shower, the liner sits under the mortar bed and behind the finished tile, so getting to one damaged spot often means tearing out part of the floor or the lower wall tile. By the time a homeowner sees staining outside the shower, swelling at the curb, or loose floor tile, the repair usually needs to go beyond a simple patch.
Does every shower need a pan liner
Every shower needs a waterproof shower base. The exact material depends on the system.
A traditional mud-pan shower uses a liner under the mortar bed. A prefabricated acrylic or fiberglass base has the waterproof layer built into the base itself. Many newer tile showers use a bonded waterproofing system at the surface instead of a buried liner. What matters is that the shower was designed as one complete waterproof assembly, not pieced together from mismatched parts.
How long does a shower pan liner last
A quality liner can last for decades, but lifespan depends more on installation than on the roll of material itself.
I have seen older liners still doing their job because the slope was correct, the drain was assembled properly, and no one punched fasteners through the wrong area. I have also seen newer showers fail early because the base held water, the corners were folded poorly, or the drain area was mishandled. In Southwest Michigan, long heating seasons and seasonal humidity swings make workmanship even more important because hidden moisture problems do not stay small for long.
Why is 40 mil liner usually preferred
It is thicker and more resistant to abuse on a real job site.
That matters before the tile ever goes in. Installers are walking the pan, packing mortar over it, and working around the drain. A heavier liner gives more margin for error than thinner material. It still is not forgiving of bad workmanship, though. A thick liner installed flat with no preslope or punctured at the curb will still fail.
Can you use a shower pan liner in a curbless shower
Yes, but a curbless shower changes the whole floor design.
For an accessible or age-in-place shower, the waterproofing usually has to extend beyond the immediate shower footprint because water can travel farther across an open bathroom floor. Floor height, joist structure, drain selection, and transition to the main bath floor all have to be planned before tile work starts. In many curbless projects, a bonded waterproofing system is the better fit than a traditional liner, especially when the goal is smooth entry with no threshold and strong protection around the bathroom floor outside the shower.
What's the most important question to ask a contractor
Ask this: "How are you building and testing the shower base?"
A good contractor should be able to explain the waterproofing method, how the drain ties into it, how the corners and curb are handled, and how the shower is flood-tested before tile. In Southwest Michigan, I would also ask whether the plan meets local code expectations for the type of shower being built, especially on a curbless or accessible remodel where floor transitions and drainage details matter.
